HM-C716 16ports balun
Humanity HM-C716 16ports balun converter solves the unmatchable problem between 75ohm and 120ohm. No need power and easy for the installation.
Main Features
- According to ITU-T G.703
- Connects 75ohm and 120ohm
- Data rates up to 2.048Mbps
- Default with female BNC connector
- Default with female RJ48/RJ45 connector
- No AC power or battery required
- Temperature: -10 to 70℃
- Humidity: 0~95%, non-condensing
PIN Definition
| BNC | RJ48/RJ45 description | DTE RJ48 |
| RX+ | Data receiving + | 1 |
| RX- | Data receiving – | 2 |
| TX+ | Data sending + | 4 |
| TX- | Data sending – | 5 |

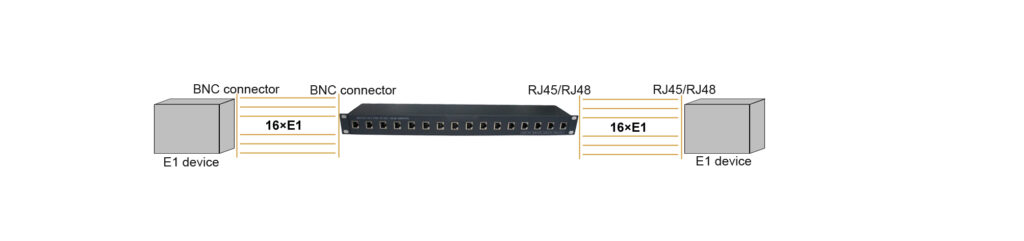

Application Diagram
