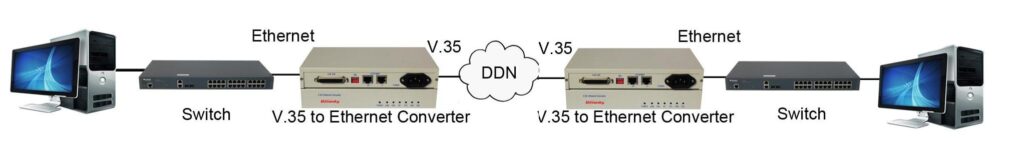

Humanity HM-C110 V.35 to Ethernet converter realizes Ethernet transmission over V.35.

It is widely used in data communication such as the connection between the base band modem and LAN.

V.35	Ethernet
Connector: DB25Interface mode: DTERate: 0~10Mbps	Fully comply with IEEE802.3(2000)MDI/MDIX optionalAuto-adapt full/half duplex. 10/100M
LED indicators	DIP swtich
POWEREthernet: LINK, FDX, BT, COLV.35: VTX, VRX	DIP1: big/small cache switchDIP2: reservedDIP3: clock rising/falling edge send data choiceSEL4:data sending from DTE when clock falling/rising edge is acceptable choice
Power	Environment
AC or DC single powerPower consumption: <5W	Operating temperature: 0°C~50°C
