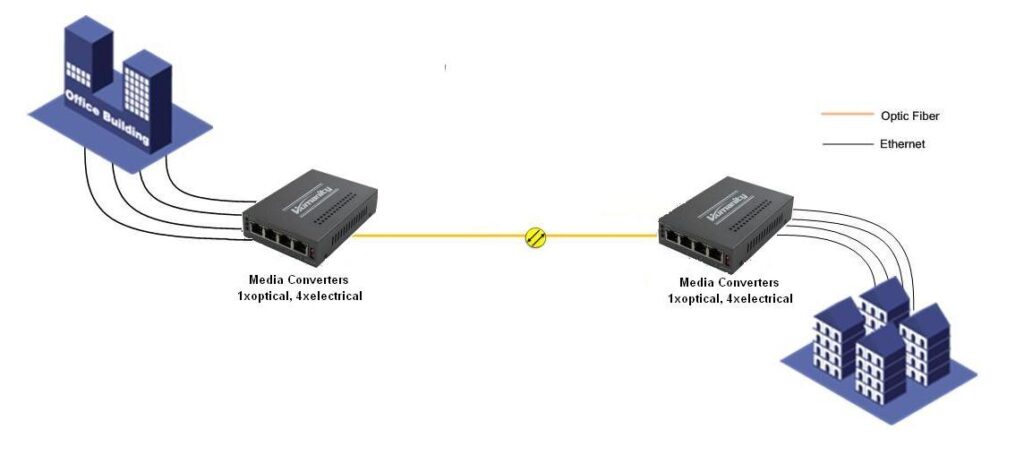

Humanity HM-T100B4E 10/100M media converter realizes 4xEthernet transmission over fiber.

This device is applied in many places where need long distance transmission.

• Comply IEEE802.3, IEEE 802.3u, IEEE802.1Q VLAN, with QinQ.
• Comply RFC2544
• With RPD(Remote Power Detection)
• The optic fiber link up to 120km
• Support flow control
• DIP switch offered to set VLAN

Optical	Ethernet
Optical port: 155M Default with dual fiber, 20km, SC, 1310nm FC/SC/LC customized Optical module customized	4xelectrical Ethernet with RJ45 Auto-adapt 10/100M Support full/half duplex,MDI/MDIX Ethernet frame length is up to 1600bytes
LED indicators	Environment
POWER, RPD Fiber: FLINK Ethernet: by different indicator colors	AC power by adaptors Working temperature: 0℃~70℃  Relative humidity<90%, non-condensing
