HM-T100BS 10/100M Media Converter
Humanity HM-T100BS 10/100M media converter realizes Ethernet transmission over fiber.
This device is with DIP switch and can set rate, LFP, full/half duplex etc.
Main Features
- Comply with standards of IEEE802.3, IEEE 802.3u.
- LED indicators for easy installation and maintenance.
- Pass RFC2544, RFC2889 test.
- CE(EMC, LVD), FCC, ROHS certified
- LFP supported
Specifications
| Optical | Ethernet |
| Optical port: 155MDefault with dual fiber, 20km, SC, 1310nmFC/SC/LC customizedOptical module customized | 1xelectrical EthernetConnector: RJ45Comply with IEEE802.3 protocol standardAuto adapt 10/100M, full/half duplex,MDI/MDIX |
| LED indicators | Environment |
| POWEREthernet: ELINK, 100M,DUPOptical: FLINK | Working temperature: 0℃~70℃ Relative humidity<90%, non-condensing |

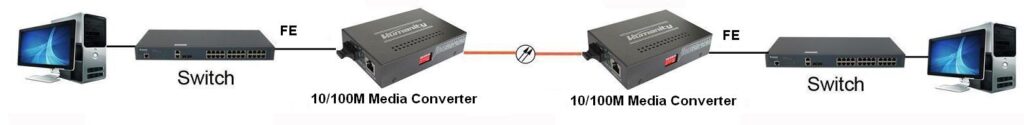

Application Diagram
Order Information
| P/N | Description |
| HM-T100BS | 10/100M Media Converter, SC/FC option, AC external power supply |
| HM-T100BSLC | 10/100M Media Converter, SFP/LC, AC external power supply |
| HM-T100NS | 10/100M Media Converter, SC/FC option, AC or DC internal power supply |
| HM-T100NSLC | 10/100M Media Converter, SFP/LC, AC or DC internal power supply |
