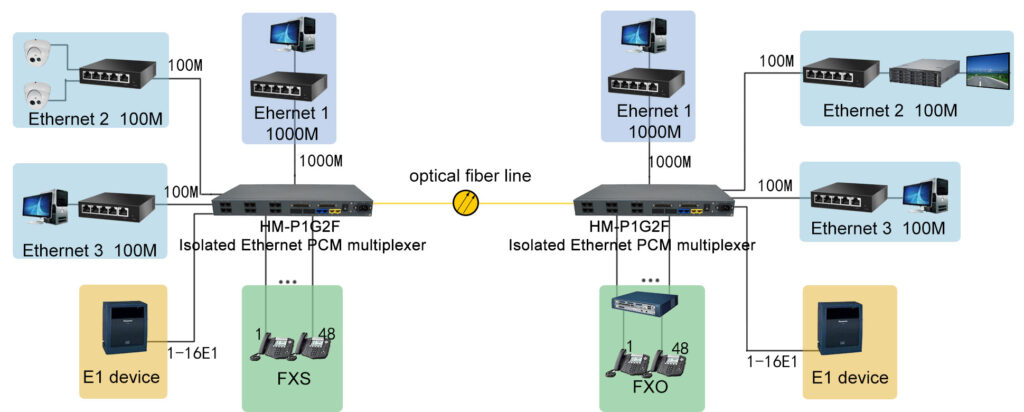

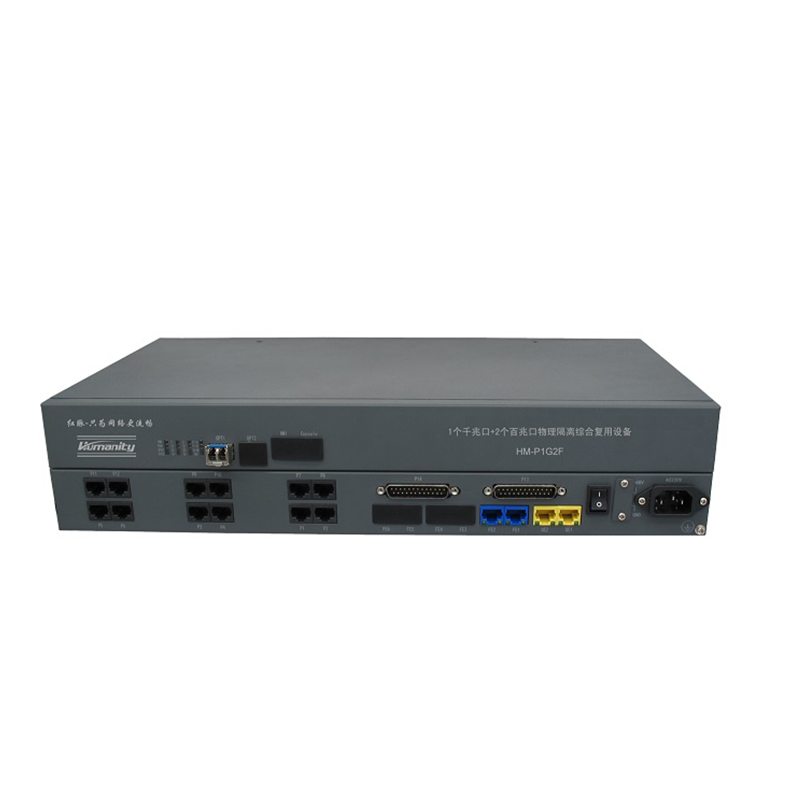

Humanity HM-P1G2F PCM multiplexer realizes 1xGigabit Ethernet, 2xFast Ethernet and customized services over fiber.

All the Ethernet ports are physically isolated and wire speed can reach 100M or 1000M.

Customized services are offered with E1, FXO/FXS, Magnet phone, 2/4wire audio, RS485/422/232 etc. No need configuration and easy for installation. They are mainly used in public security, military, water conservancy, electric power, oil field etc.

• 1U 19inch
• Optical rate with 1.25G
• Thunder-protection
• 24hours aging for stable performance.
• Customized flexible services

Optical	Gigabit Ethernet
1xSFP slotOptical type: use 1.25G or above.Please state optical requirement when in order	Connector: RJ451xGigabit Ethernet availableAuto adapt 10/100/1000M, MDI/MDIX, full/half duplexMTU: 1784BytesSupport stream control
Fast Ethernet	Telephone(FXO/FXS/hotline, option)
Connector: RJ452xFast Ethernet availableShare 10/100M, MDI/MDIX, full/half duplexSupport stream control	Connector: RJ45Impedance: 200Ω+680Ω‖0.1uFFeeding voltage：DC 24 VIdle channel noise：75 dB
E1(option)	Data(option)
Connector: DB25Rate: 2048Kb/s±50ppm Line code: HDB3 codingComply with ITU-T G.703, ITU-T G.823	Connector: RJ45RS232/RS485/RS422 optionRate: Maximum up to 115.2 Kbps
Magnet phone(option)	4 wire E&M(option)
Connector: RJ45Input impedance(normal non ringing status): 600ΩReturn loss: 40dBFrequency: 300-3400Hz（-0.6-+3dB）Ring voltage: ≤ 90VRing frequency: 20Hz to 90Hz	Connector: RJ45Input impedance: 600ΩTolerance common-mode voltage in audio wire: 300VCMRR: better than 55db.
Console management(option)	Environment
Connector: RJ45For monitor and configuration	AC powerPower consumption: ≤30WWorking temperature: 0 ~ 70℃Relative humidity: ≤90%(25℃)
