Humanity HM-RP104 realizes 64E1+4Ethernet(3GE+1GX) transmission over optical fiber line. Optical is with SFP and support ALS(automatic laser shutdown) to protect eyes during installation.

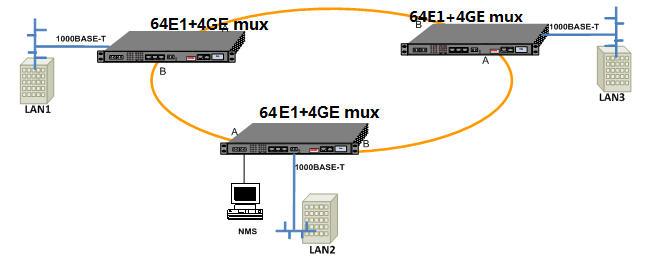

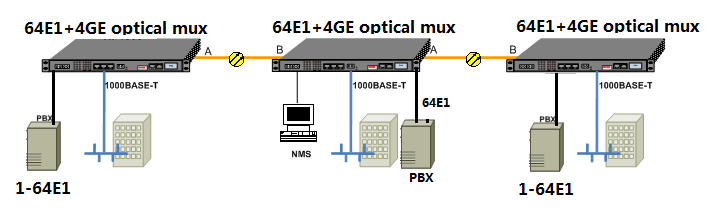

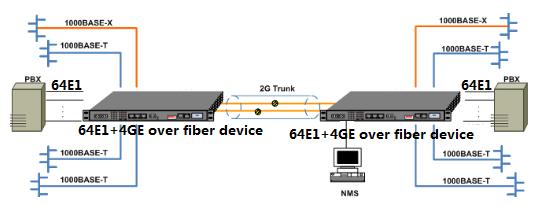

This device can be used for point to point application, point to dual point application, chain application or ring application.

• 1U 19inch
• Maximum up to 16E1+4Ethernet over fiber optical solution
• Supports Remote Power down Detect (RPD) for easy maintenance
• Support ALS to protect eyes during installation.
• 24 hours aging to ensure stable performance.
• Support SNMP and console management.

Optical	E1
Optical rate: 1.25GType:SFP/LC connector 2xoptical ports are offered Supports 1+1 optical protection and Automatic Protect Switch (APS) Provides optical loopback functionWith ALS function	64E1Connector: DB37 Offer DB37/BNC adapter for 75ohm,DB37/RJ48C for 120ohm Device loop and E1 line loop controlled by local side. Supports embedded E1 BERT function
Ethernet	Management
4xGEConnector: 3xRJ45, 1xSFP/LCOptical Ethernet: 1.25GComply with IEEE802.3 standard Auto adapt 10/100/1000M Support flow control and broadcast storm filtering control 4K MAC address table Supports port-based VLAN and IEEE 802.1Q tag-based VLAN	Supports CLI based on RS232 (CONSOLE) Supports CLI based on Ethernet (EMU)  (TELNET)Supports Simple Network Management Protocol (SNMP, V1 and V2C)
Power	Environment
Flexible power: AC, DC, AC+DCPower consumption: less than 8W	Working temperature: -5 ~ 50℃Relative humidity: ≤95%, non-condensing
