HM-C108W mini E1 to Ethernet Converter

Humanity HM-C108W mini E1 to Ethernet Converter realizes Ethernet transmission over E1 at the bandwidth of 2048Kbps. Plug and play, without any setting or debugging work.

Main Features

  • Comply with ITU-T G.703
  • Unframe E1 with 2048kbps
  • AC power
  • Power module support thunder protection with isolate 1500V


Specifications

E1Ethernet
One E1 offeredConnector: RJ45 and BNCImpedance: 120ohm and 75ohmLine code: HDB3Comply with ITU-T G.703 standardJitter comply with ITU-T G.823 standardOne Ethernet interfaceAuto adapt 10/100M, full/half duplexSupport MDI/MDIXConnector: RJ45
LED indicatorsPower& Environment
PWREthernet: LINK, DUPE1: LOS, AISAC or DC single powerWorking temperature: 0 ~ 70℃Relative humidity: ≤90%(25℃)Power consumption: <5W

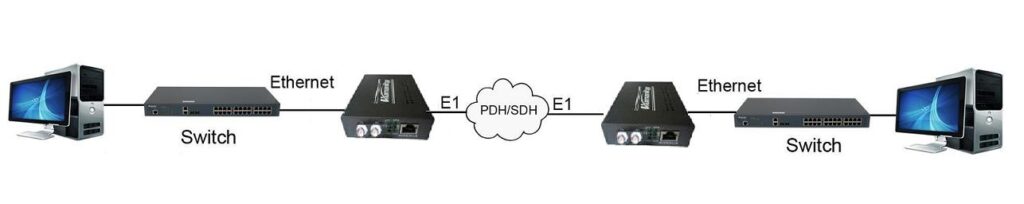

Application Diagram
