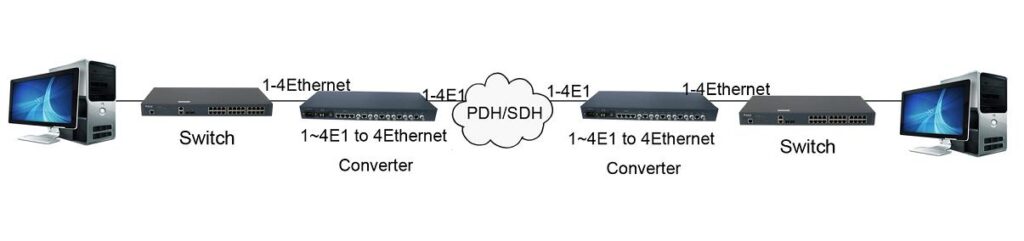

Humanity HM-C200B 4E1 to Ethernet converter realizes Ethernet transmission over 1~4E1.

This model complies with GFP, VCAT, LCAS and able to work with third party device followed same protocol.

• Realizes Ethernet transmission over E1
• Comply with ITU-T G.7041, G.7042, G.7043, G.8040. It’s able to work with third party device followed same standard ITU protocol.
• Support auto delete the fault E1 channels. Auto in use after E1 is normal.
• E1 can not connect according to serial number. In case one E1 failure, the other E1 can still work.
• For 4E1 channels, the maximum tolerable time delay difference between any two can be up to 220ms.

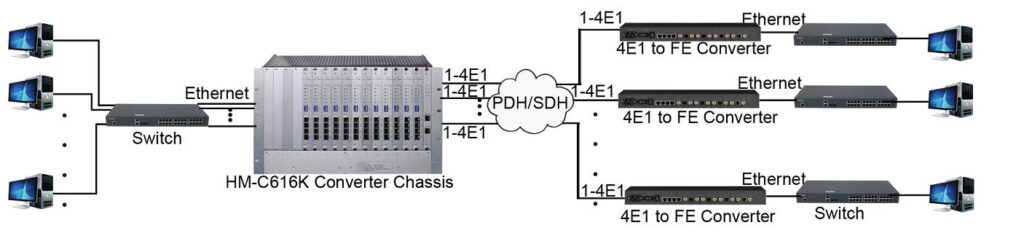

• Chassis type supported
• MBTF: 50000hours

E1	Ethernet
4xE1 with unframe structureConnector: RJ45 and BNCImpedance: 120ohm and 75ohmLine code: HDB3Comply with ITU-T G.703 standardJitter comply with ITU-T G.823 standard	4xEthernet with VLANComply with IEEE802.3, IEEE802.1QConnector: RJ45Auto adapt 10/100M, full/half duplexSupport MDI/MDIXMAC address table capability: 1024Minimum frame length: 64bytesMaximum frame length: 1916bytesBandwidth: ≈n×E1（n=0～4） Default setting: 4×E1 ≈7.92Mbps
LED indicators	DIP switch
POWEREthernet: LINK1-4, BT1-4E1: ALR, L01-L04, LOS,AIS,LOOP,LOF* ALR is general alarm* L01-L04 is for alarm E1 channel* LOS, AIS, LOOP,LOF alarm controlled by DIP1-2, displayed by L01-L04.	DIP1,2: set alarm contents for L01-L04 DIP3: set E1 loop DIP4: set VLAN
Button	Management
Choose Local/remote alarm Choose CONSOLE/SNMP management	Default with console managementSNMP option, please state when in order
Power	Environment
AC220V and DC-48V , DC-48V and DC-48V optionAC220V power range: AC90V~AC260VDC-48V power range: DC-36V~DC -72VLess than 10W	Working temperature: -5 ~ 50℃Relative humidity: ≤95%, non-condensing
