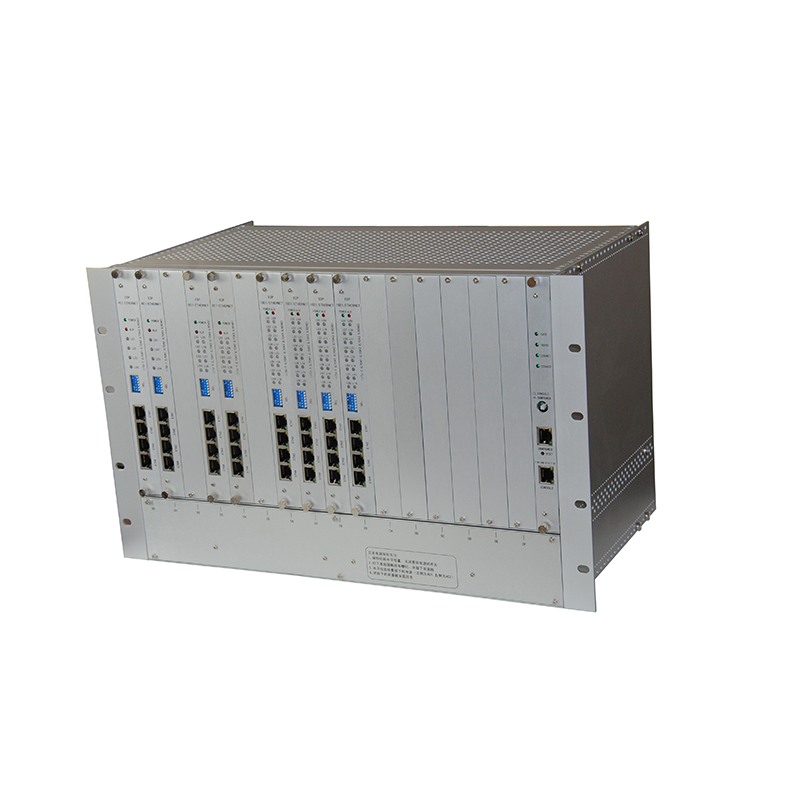

HM-C616K Chassis for 4E1/8E1 to Ethernet Converter
Humanity HM-C616K chassis is 6.5U 19inch. Maximum 16slots available for 4E1/8E1 to 4Ethernet converters.
All these converters are comply with ITU-T G.7041, G.7042, G.7043, G.8040 and can work with third party devices followed same standard.
Main Features
- 16slots for converter cards, 1 slot for management card.
- This chassis is for HM-C200BC 4E1 to Ethernet converter card and HM-C800BC 8E1 to Ethernet converter card
- The card is not with management function. The management is offered by management card.RS232 or SNMP NMS available for option. Please state when in order.
Specifications
| Available cards | Management(option) |
| HM-C200BC 4E1 to 4Ethernet converter cardHM-C800BC 8E1 to 4Ethernet converter card | 1xmanagement card availableCONSOLE, SNMP option |
| 4E1/8E1 to 4Ethernet converter card | DIP switch in card |
| The two converter cards can be mixedE1 with DB37 connector4Ethernet with VLANAuto-adapt 10/100M, full/half duplex, MDI/MDIX | DIP1-2: control alarms for LOS, AIS, LOOP,LOFDIP3: set loop DIP4: set VLANDIP5: set local/remote alarm |
| LED | Power& Environment |
| POWERALR for general alarms E1: L01-L08, contents controlled by DIP1,2. Different Ethernet LED color to indicates different Ethernet status. | Default with one DC-48V power supply Available to increase one AC power Working temperature: -5 ~ 50℃ Relative humidity: ≤95%, non-condensing Power consumption: less than 60W |
